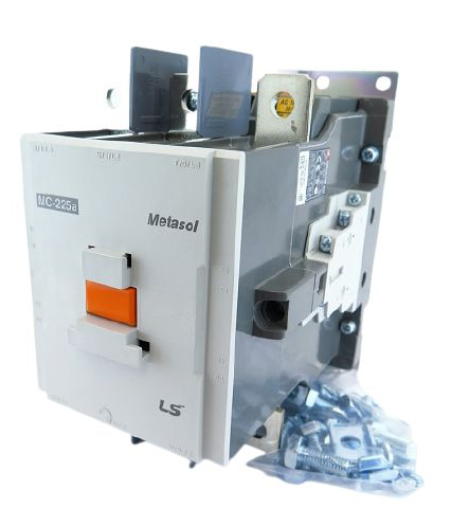

Contactor LS MC-225a 220V 225A 132kW 2NC+2NO

4038 lượt xem

Giá: Liên hệ

Giao hàng toàn quốc, miễn phí khu vực nội thành Hà nội với đơn hàng lớn.

Tư vấn kỹ thuật 24/7 : 096 729 4498

Đăng ký đại lý

Mua nhanh & Tư vấn kỹ thuật: 096 729 4498

Cơ chế hợp tác tốt

Giá niêm yết

Giao toàn quốc

Danh mục: Contactor


Rated operational current (Ie)	225A
Number of poles	3P
Contacts configuration	3NO
Rated coil voltage	220VAC
Auxiliary contact	2NO+2NC
Separately accessories	Auxiliary contact: UA100, Interlock: AR180
Auxilliary contact blocks (Order separately)	AU-100 1a1b
Mechanical interlocks (Order separately)	AR-180
Overload relay (Order separately)	MT-225/3H 130, MT-225/3H 153, MT-225/3H 153A, MT-225/3H 200
Type	Standard
Frame size (AF)	225AF
Applied motor capacity	132kW at 380VAC
Rated frequency	50/60Hz
Line voltage	AC
Rated operational voltage (Ue)	1000VAC
Connection type	Busbar terminals
Mounting type	Surface mounting (Screw fixing)
Ambient temperature	30…65°C
Approx. weight	5.4kg
Overall width	138mm
Overall height	203mm
Overall depth	185.1mm
Degree of protection	IP00
Representative standard	CCC, IEC, UL
